1977 Smith Corona Sterling Serial # 6MLD 104674 1977 Smith Corona Sterling typewriter, Serial # 6MLD 104674 Daniel Burgoyne's 1977 Smith Corona Sterling typewriter. 2026-03-03 From the Virtual Typewriter Collection of Daniel Burgoyne: 1977 Smith Corona Sterling Serial # 6MLD 104674 An oddity in the lineup of S-C, this 6MLD series is not in the typewriter database, maybe because this was made after the Galaxie 12 (6MLC)? It is simply named a Sterling, has a 12" platen but no mention of it in the name, and is flanked with a little round shiny logo with an S circled with dots.

Oh, by the way, yes, Made in Canada, has the solid proven alu case and, well a Canada bilingual keyboard (E-F).

This is a basic mechanism with a tab function that is keyboard set with buttons on the right. No half spacing, no Select-a-Type, no de-jamming key, not even an eraser table nor a paper rest, but yes, finally, 1 1/2 line spacing!

The right-hand side carriage return lever was broken and I decided to fix it with what I have in my shop. This would also work for a Classic 12, Galaxie or similar model.

It is a little hack using a 5/16" brass ferrule from Lee Valley tools and Cold Weld epoxy glue.

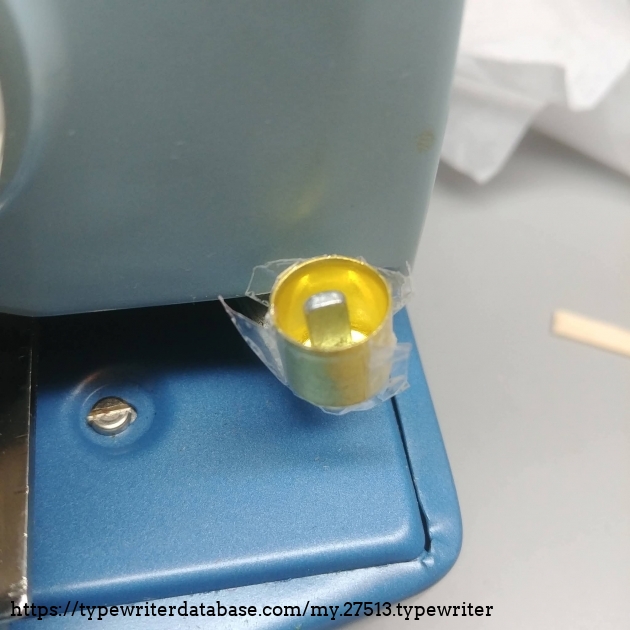

First, I put packing tape to cover the small end of the ferrule to keep the Cold Weld from flowing out, made a small slit with an X-Acto blade and put the ferrule on the steel stub.

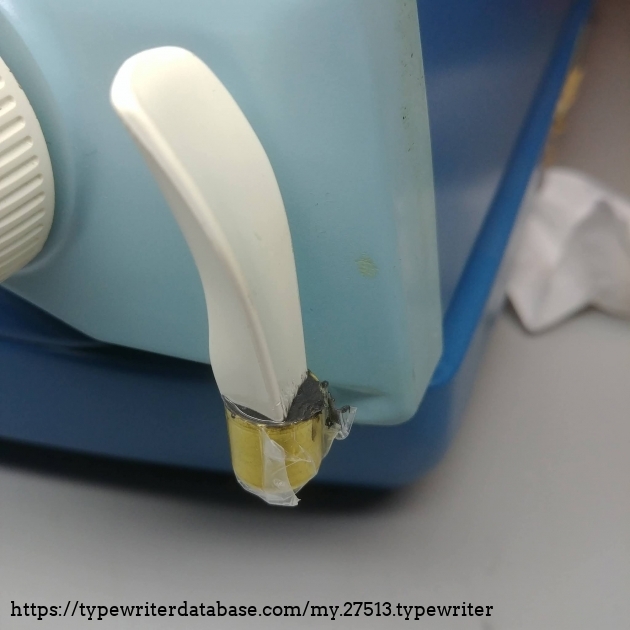

Next, I filled the ferrule to 3/4 with glue, and also put some in the bottom of the broken plastic lever. The lever was pushed onto the steel stub, and I filled a bit more glue to the top of the ferrule. It normally sets in 8 minutes and is completely cured after 16 hours.

1977 Smith Corona Sterling #6MLD 104674

Status: My Collection
Hunter: Daniel Burgoyne (Ixzed23)
Created: 02-24-2026 at 07:25AM
Last Edit: 03-03-2026 at 07:18AM


Description:

An oddity in the lineup of S-C, this 6MLD series is not in the typewriter database, maybe because this was made after the Galaxie 12 (6MLC)? It is simply named a Sterling, has a 12" platen but no mention of it in the name, and is flanked with a little round shiny logo with an S circled with dots.

Oh, by the way, yes, Made in Canada, has the solid proven alu case and, well a Canada bilingual keyboard (E-F).

This is a basic mechanism with a tab function that is keyboard set with buttons on the right. No half spacing, no Select-a-Type, no de-jamming key, not even an eraser table nor a paper rest, but yes, finally, 1 1/2 line spacing!

The right-hand side carriage return lever was broken and I decided to fix it with what I have in my shop. This would also work for a Classic 12, Galaxie or similar model.

It is a little hack using a 5/16" brass ferrule from Lee Valley tools and Cold Weld epoxy glue.

First, I put packing tape to cover the small end of the ferrule to keep the Cold Weld from flowing out, made a small slit with an X-Acto blade and put the ferrule on the steel stub.

Next, I filled the ferrule to 3/4 with glue, and also put some in the bottom of the broken plastic lever. The lever was pushed onto the steel stub, and I filled a bit more glue to the top of the ferrule. It normally sets in 8 minutes and is completely cured after 16 hours.

Typeface Specimen:

Photos:

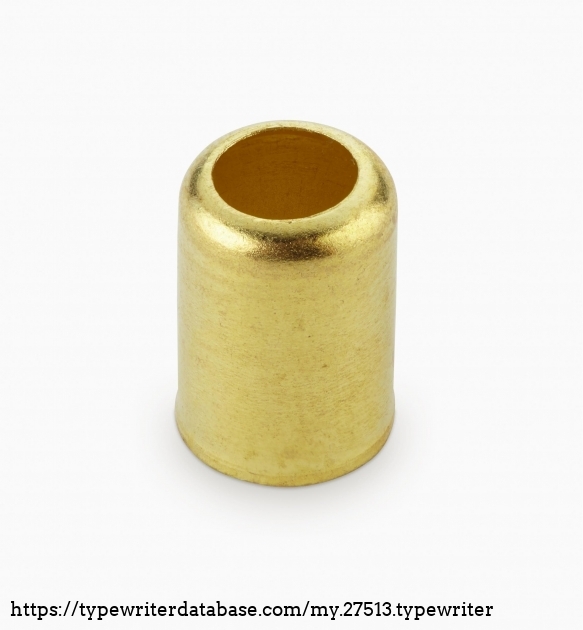

Brass ferrule from Lee Valley Tools  to repair a broken carriage release lever
Brass ferrule from Lee Valley Tools to repair a broken carriage release lever

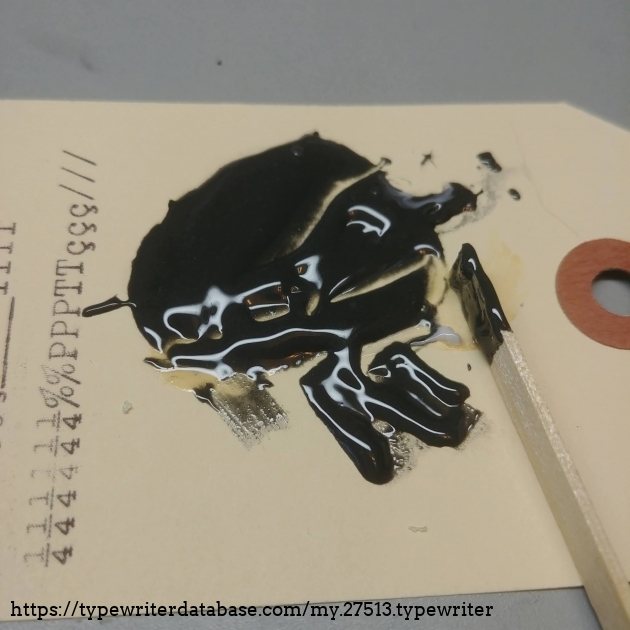

Cold Weld is a steel reinforcepoxy glue with a 3000 psi rating.
Cold Weld is a steel reinforcepoxy glue with a 3000 psi rating.

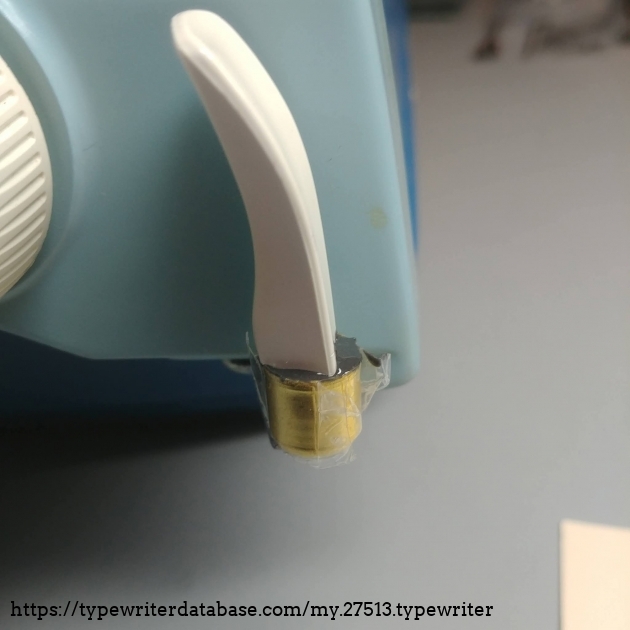

I let it set overnight before removing the tape.
I let it set overnight before removing the tape.

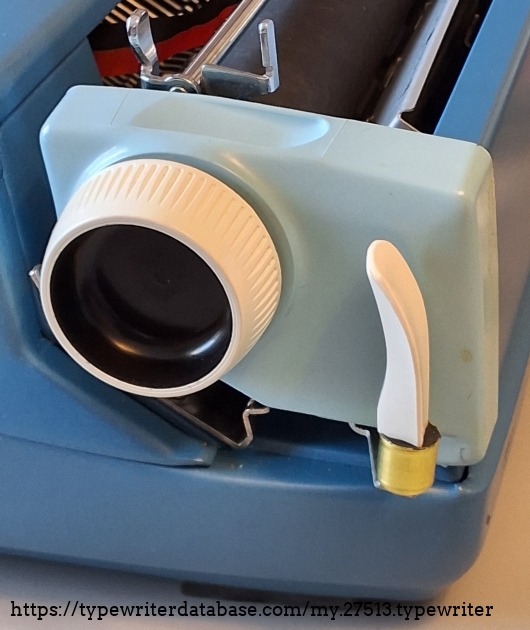

After removing the packing tape and testing.  I am hopeful it will hold for a long time.
After removing the packing tape and testing. I am hopeful it will hold for a long time.
